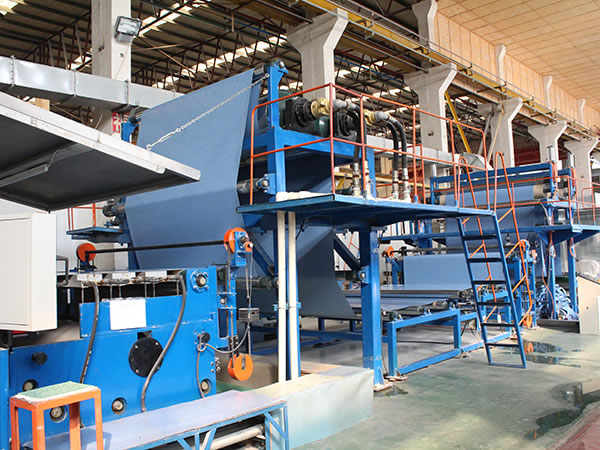

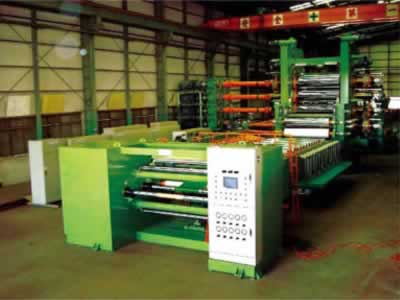

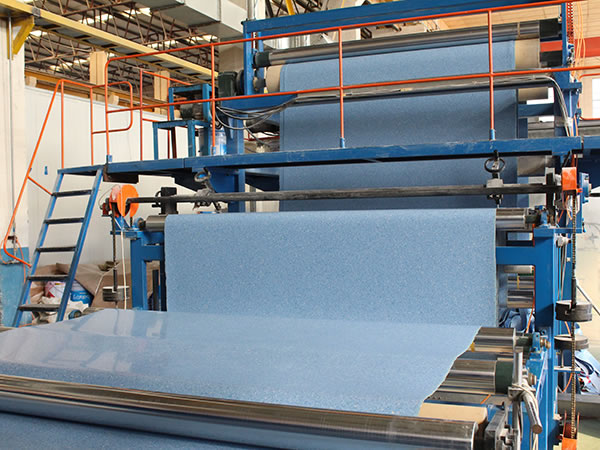

PVC Rigid / Semi-Rigid Film Calendering Line

  •  PVC Rigid / Semi-Rigid Film Calendering Line
  •  PVC Rigid / Semi-Rigid Film Calendering Line
Specifications
Model Φ12"x36"L5 Φ16"x48"L5 Φ16"x48" Ґ 4 Φ18"x54"L5 Φ18"x54" Ґ 4 Φ20"x63" Ґ 4
Item Φ305x900 L5 Φ410x1220 L5 Φ410x1220 Ґ 4 Φ450x1300 L5 Φ450"x1300 Ґ 4 Φ510x1600 Ґ 4
Roller Size Φ305x900 Φ410x1200 Φ410x1200 Φ450x1300 Φ450"x1300 Φ510x1600
Roller Arrangement L pattern L pattern Ґ pattern L pattern Ґ pattern Ґ pattern
Production Rate (m/min) 6~40 6~40 6~40 6~40 6~40 6~40
Film Thickness (mm) 0.07~0.7 0.07~0.7 0.05~0.7 0.07~0.7 0.05~0.7 0.05~0.7
Film Width (mm) 700 1,000 1,000 1,000 1,000 1,300
Motor Power (kw)/Number of Motor 15/5 22/5 22/2 15/2 30/5 30/2 22/2 22/2 15/2
Model Φ22"x66" Ґ 4 Φ22"x66"L5 Φ24"x80" Ґ 4 Φ24"x72"L5 Φ24"x72"Ґ5 Φ26"x90" Ґ 4
Item Φ560x1675 Ґ 4 Φ560x1675 L5 Φ610x2030 Ґ 4 Φ610x1830 L5 Φ610"x1830Ґ5 Φ660x2300 Ґ 4
Roller Size Φ560x1675 Φ560x1675 Φ610x2030 Φ610x1830 Φ610"x1830 Φ660x2300
Roller Arrangement Ґ pattern L pattern Ґ pattern L pattern Ґ pattern Ґ pattern
Production Rate (m/min) 6~60 6~60 6~60 6~60 6~60 6~60
Film Thickness (mm) 0.05~0.7 0.07~0.7 0.07~0.7 0.05~0.8 0.07~0.7 0.05~0.7
Film Width (mm) 1,350 1,350 1,830 1,500 1,500 1,850
Motor Power (kw)/Number of Motor 55/2
37/2
75/3
55/2
75/2
55/2
75/2
90/3
75/2
90/3
75/2
90/2
Model Φ26"x80"Ґ5 Φ26"x80"L5 Φ28"x100" Ґ 4 Φ28"x100"Ґ5 Φ28"x100" L5 Φ30"x102" Ґ 4
Item Φ660x2030Ґ5 Φ660x2030 L5 Φ710x2550 Ґ 4 Φ710x2550Ґ5 Φ710"x2550L 5 Φ760x2600 Ґ 4
Roller Size Φ660x2030 Φ660x2030 Φ710x2550 Φ710x2550 Φ710"x2550 Φ760x2600
Roller Arrangement Ґ pattern L pattern Ґ pattern Ґ pattern L pattern Ґ pattern
Production Rate (m/min) 6~60 6~60 6~60 6~60 6~60 6~60
Film Thickness (mm) 0.05~0.7 0.07~0.7 0.05~0.7 0.07~0.8 0.07~0.7 0.05~0.7
Film Width (mm) 1,600 1,600 2,050 2,050 2,050 2,200
Motor Power (kw)/Number of Motor 75/2 110/3 75/3 110/3 90/2 110/2 90/2 110/3 90/2 110/3 132/2 90/2
Model Φ30"x102"Ґ5 Φ32"x110 Ґ 4 Φ34"x160" Ґ 4 Φ23" ×Φ26"x73" Ґ 7
Iem Φ760x2600Ґ5 Φ810x2800 Ґ 4 Φ860x4050 Ґ 4 Φ585" ×Φ660"x1850" Ґ 7
Roller Size Φ760x2600 Φ810x2800 Φ860x4050 Φ585" ×Φ660"x1850"
Roller Arrangement Ґ pattern Ґ pattern Ґ pattern Ґ pattern
Production Rate (m/min) 6~60 6~60 6~60 6~60
Film Thickness (mm) 0.07~0.7 0.05~0.7 0.05~0.7 0.07~0.8
Film Width (mm) 2,200 2,250 3,250 1,550
Motor Power (kw)/Number of Motor 132/3
90/2
132/2
110/2
132/2
185/2
90/2
75/5
