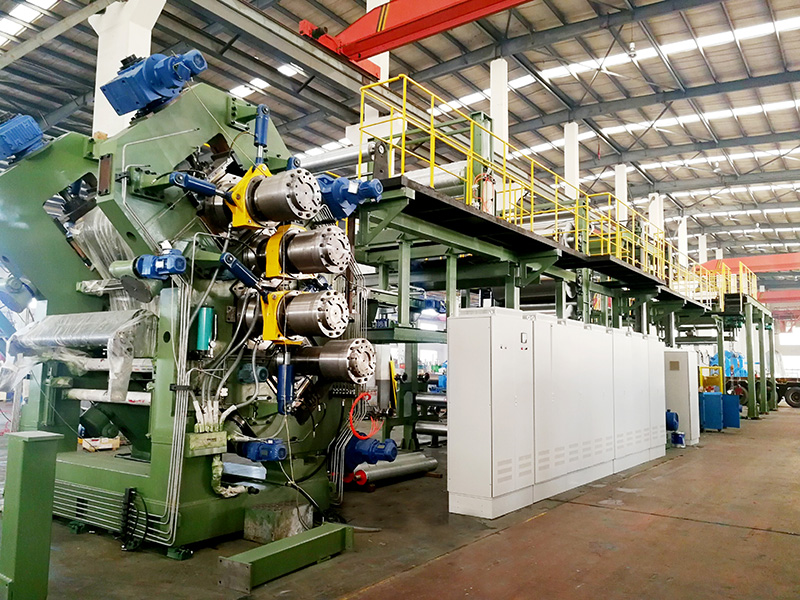

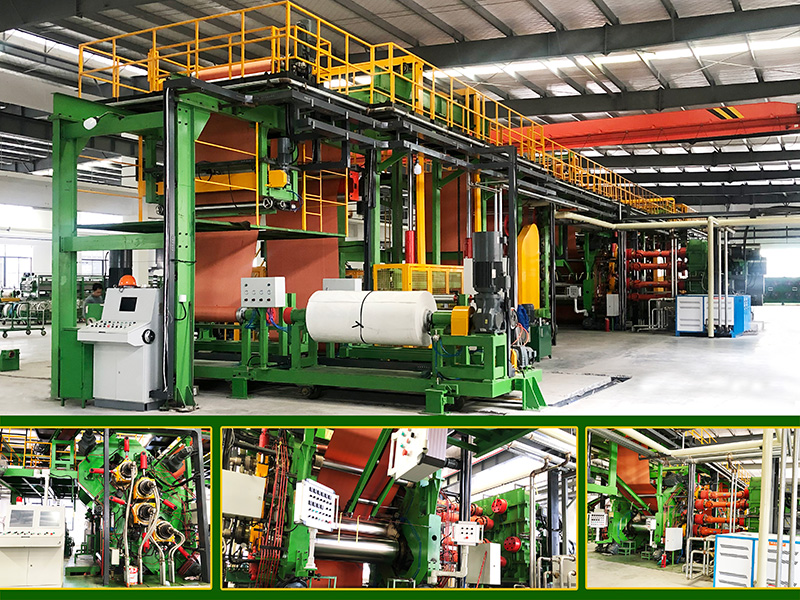

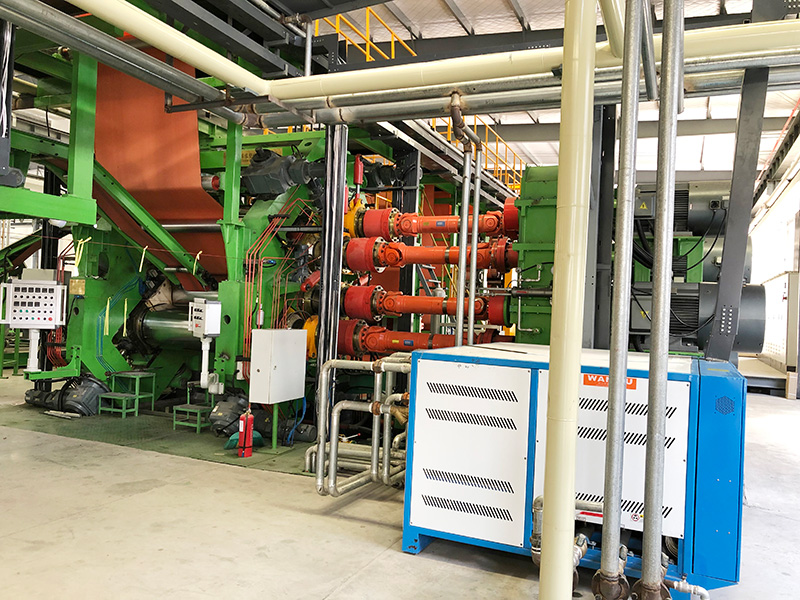

Four Roll Calender Line

Our high-precision rubber calender, a pivotal piece of equipment in the manufacturing of tires and various rubber products, excels in rubberizing of textile or steel cord.

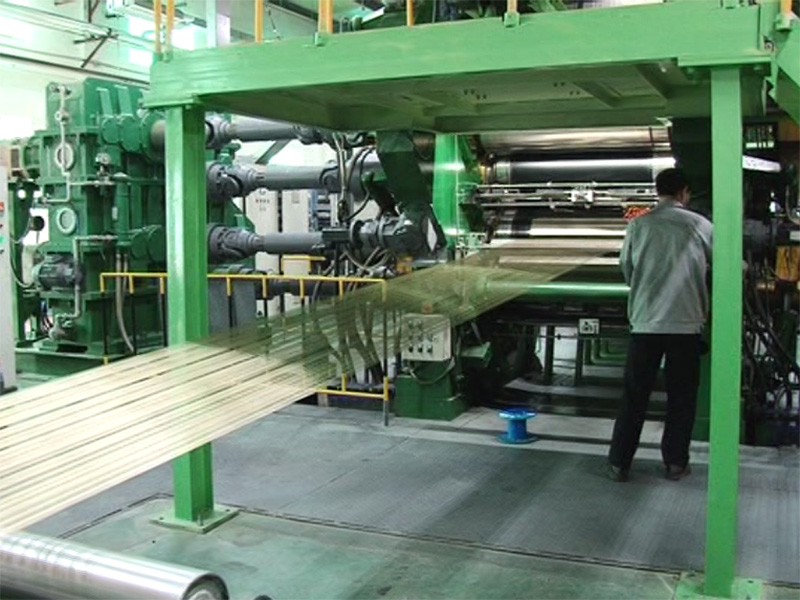

Four Roll Calender Line (Steel & Nylon Cord)
  • Steel cord calendering width: maximum 1000mm
  • Nylon cord calendering width: maximum 1500mm
  • Roller working diameter: 610mm
  • Roller working length: 1800mm
  • Number of rollers: 4
  • Roller arrangement: S-type, with upper and lower rollers tilted at 45°
  • Roller surface linear speed: 6-60m/min
  • Maximum storage capacity: 12m
  • Main motor power: 90kW*2(1#, 4#) 110kW*2(2#, 3#)
Four Roll Calender Line (Nylon Cord)
  • Steel cord calendering width: maximum 1000mm
  • Roller working diameter: 550mm
  • Roller working length: 1300mm
  • Number of rollers: 4
  • Roller arrangement: S-type, with upper and lower rollers tilted at 45°
  • Roller surface linear speed: 4-40m/min
  • Maximum storage capacity: 40m
  • Main motor power: 55kW*2(1#, 4#) 75kW*2(2#, 3#)

Our high-precision four roll calender line is engineered for exceptional efficiency and adaptability in the production of rubber products. Each roller is independently driven by a variable frequency motor, allowing for precise control over the roller surface's linear speed, which can reach up to 60m/min. This capability significantly enhances production efficiency. Additionally, the roller speed ratio is adjustable within a range of 0.5-1, accommodating a broad spectrum of process requirements. The inclusion of a programmable controller enables automatic control over the entire machine, ensuring production adheres to pre-defined process formulas. This advanced control over critical quality factors such as temperature, pressure, roller surface speed, and cord tension is crucial for maintaining product stability.
