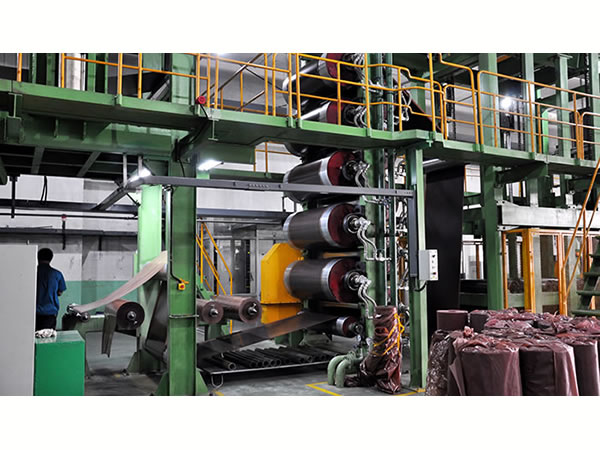

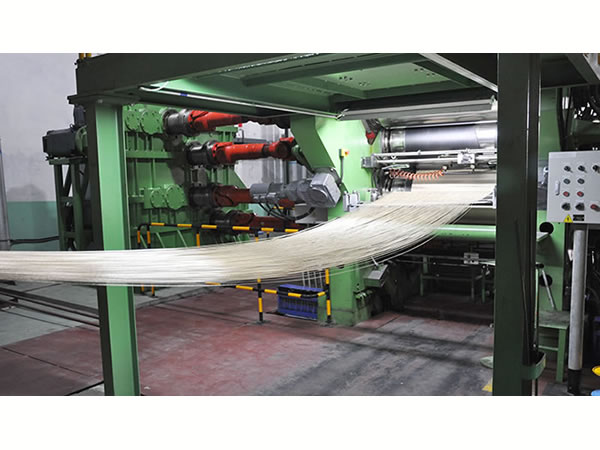

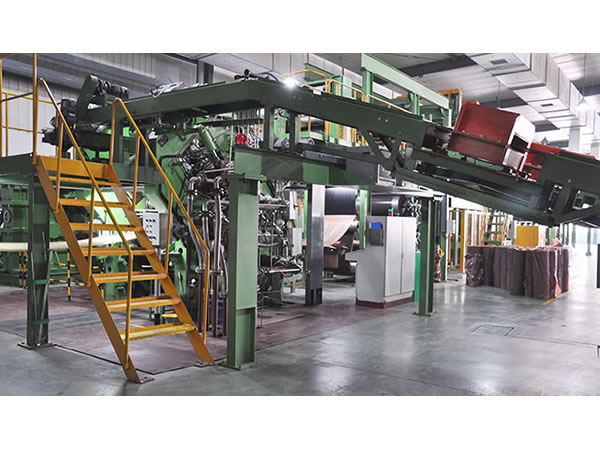

Steel Cord Calender Line
| Maximum Width of Steel Cord (mm) | 1,000 |
| Roller Diameter (mm) | 550 |
| Working Section Length of Roller (mm) | 1,300 |
| Number of Roller | 4 |
| Roller Arrangement | S pattern (Both upper and lower rollers tilt 45 degrees) |
| Roller Surface Speed (m/min) | 4-40 |
| Speed Ratio Between Rollers (Each roller is driven separately by a DC motor) | adjustable |
| Distance between Stock Guides (mm) | 850-1,100 |
| Maximum Cord Storage Capacity (m) | 40 |
| Cutting Mode | Pneumatically |
