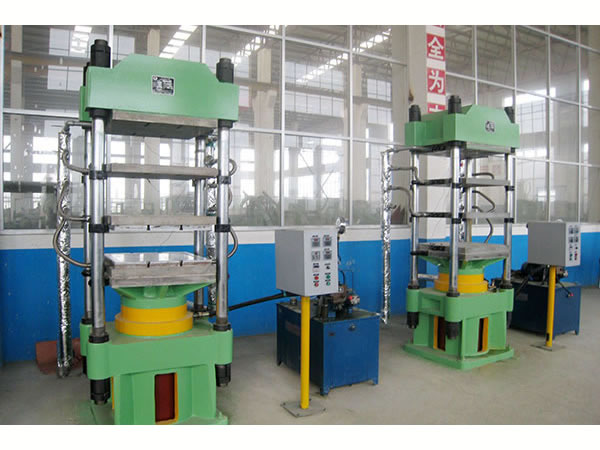

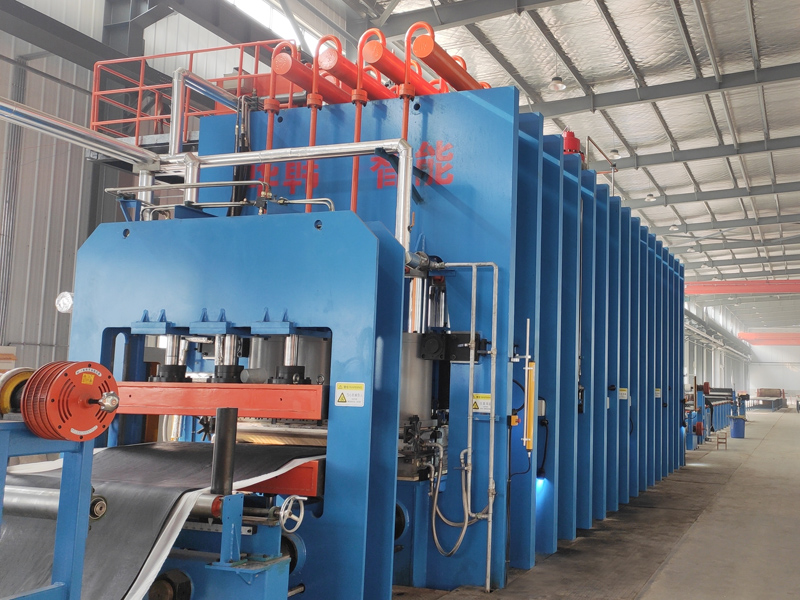

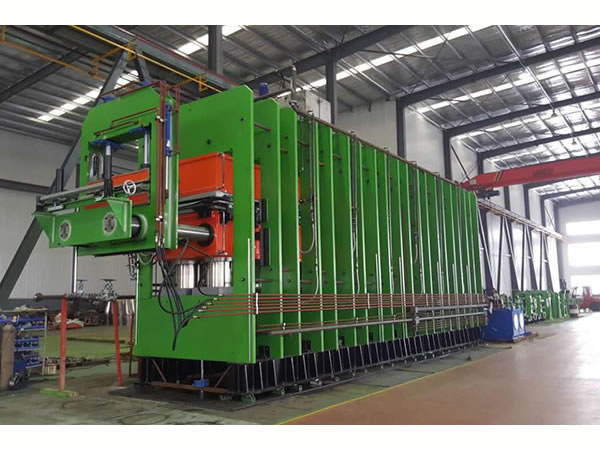

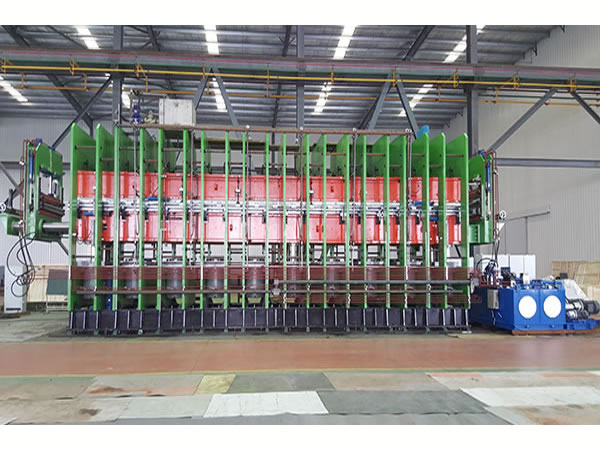

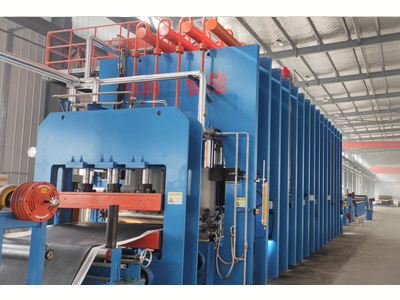

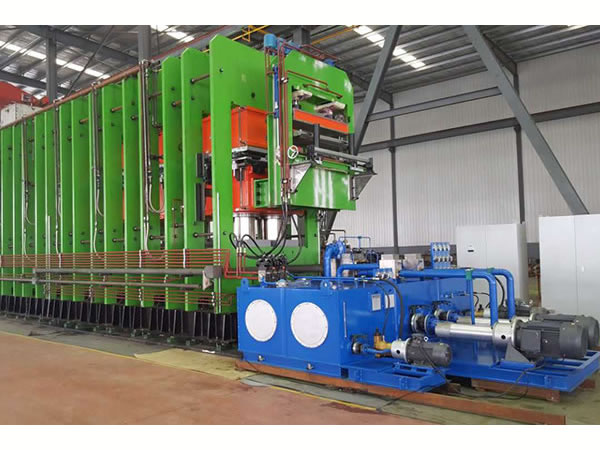

Plate Vulcanizing Machine / Vulcanizing Press
| Model Item | |||||||||
| Total Clamping Force | KN | 250 | 500 | 1000 | 10300 | 25200 | 72MN | 115-2MN | |
| Hot Plate Pressure | Mpa | 2.1 | 3.1 | 2.7 | 2.3 | 2.8 | 4 | 4 | |
| Maximum Piston Stroke | mm | 250 | 300 | 300 | 250 | 250 | 360 | 360 | |
| Hot Plate Size | mm | 350x350 | 400x400 | 600x600 | 1,400x3,200 | 1,500x6,000 | 1,800x10,000 | 2,400x12,000 | |
| Plate Spacing | mm | 75 | 125-150 | 125-150 | 300 | 300 | 360 | 360 | |
| Layers of Working Plate | 2-4 | 2-4 | 2-4 | 1 | 1 | 1 | 1 | ||
| Maximum Pressure of Working Liquid | Mpa | 12 | 12 | 16 | 14.5 | 15.5 | 17.5 | 25 | |
| Total Heating Power | kw | 12 | 12 | 20 | - | - | - | - | |
| Maximum Steam Pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | |
| Overall Dimensions | L | mm | 1,260 | 1,260 | 13,50 | 3,400 | 6,400 | 10,500 | 12,600 |
| W | mm | 560 | 560 | 750 | 2,360 | 2,520 | 3,200 | 4,000 | |
| H | mm | 1,650 | 2,200 | 1,800 | 3,050 | 3,420 | 4,670 | 5,260 | |
| Gross Weight | t | ~2 | ~2.2 | ~3 | ~27 | ~60 | ~240 | ~340 | |
