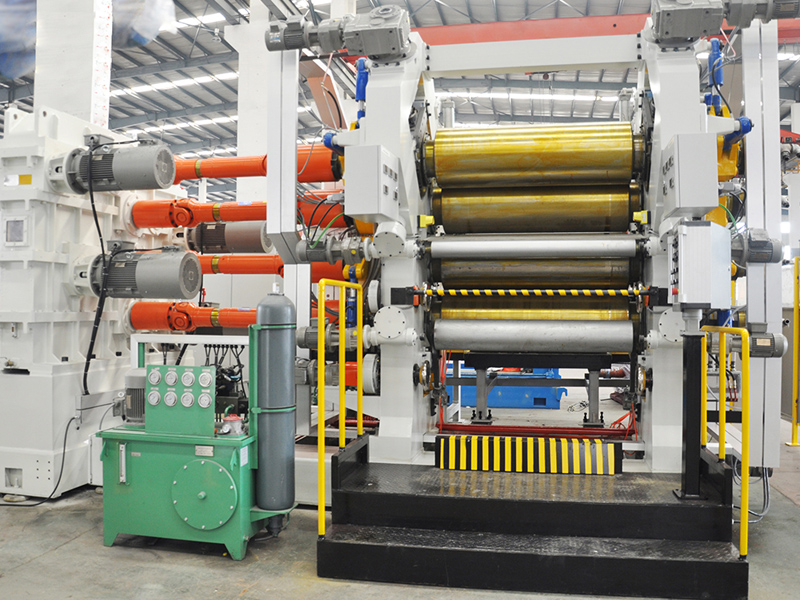

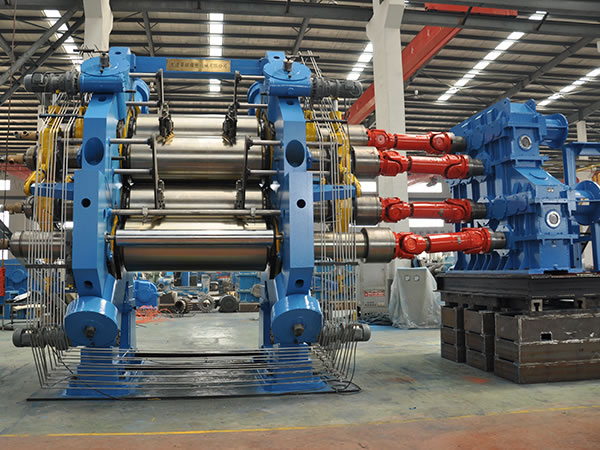

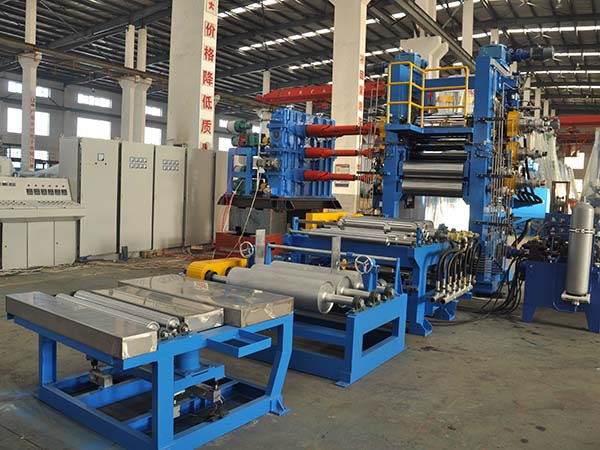

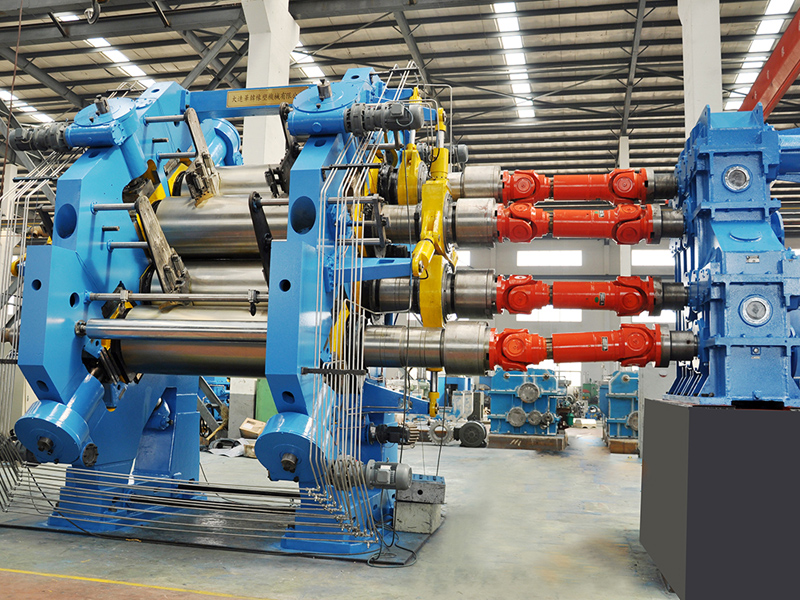

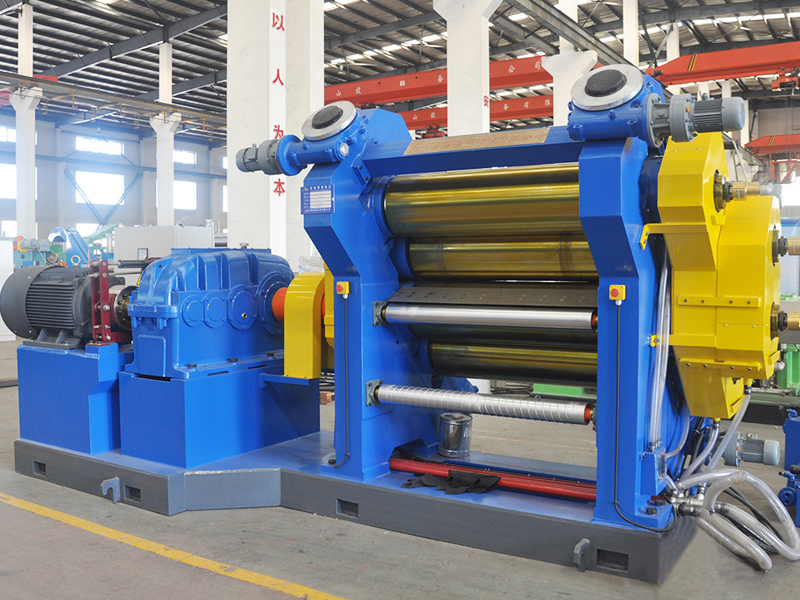

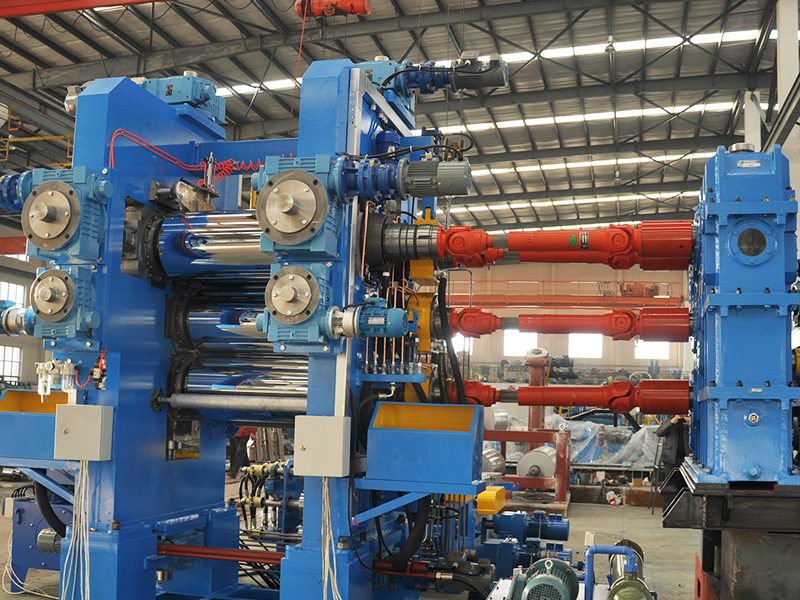

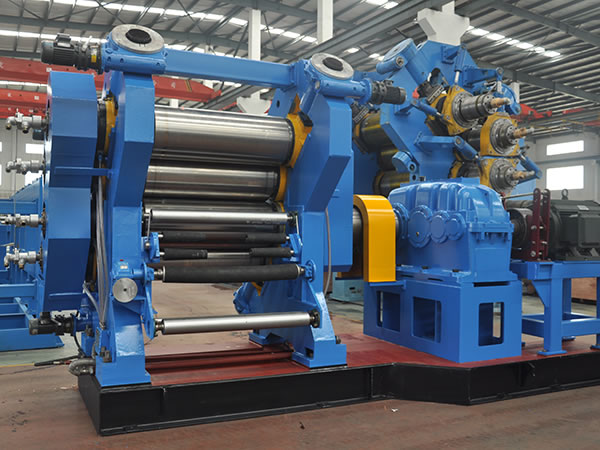

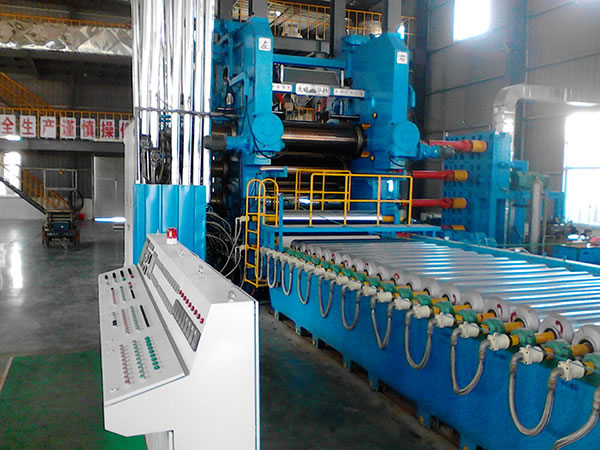

The rubber calender is outfitted with different auxiliary devices to accommodate various processes such as rubberizing and frictioning. Each auxiliary device of the rubber calendering machine is designed in accordance with the corresponding production process, and uses rolling bearings on the rubber calender machine. The gear reducers are designed with a hardened surface to reduce wear, and with either a hollow or bored structure, the rolls used are made of chilled cast iron. The rubber calender can be driven by single or multiple motors, each of which feature a stepless speed regulation to widen the application range.

This rubber forming machine is available in two types: regular and precision. The precision rubber calendering machine is equipped with an axis cross unit, pre-loading mechanisms, a pre-bending device, and a device to prevent the calendered rubber material from extending across the connector.

Specifications
Model Item XY-4I(Γ)
230x630 		XY-4I(Γ)
360x1120 		XY-4I(Γ)
400x1200 		XY-4I(Γ)
450x1400 		XY-4I(Γ)
550x1500 		XY-4I(Γ)
610x1730 		XY-4I(Γ)
700x1850 		XY-4I(Γ)
710x2130 		XY-4I(Γ)
800x2500 		XY-4I(Γ)
860x2500
Roll Diameter mm 230 360 400 450 550 610 700 710 800 860
Roll Working Length mm 630 1,120 1,200 1,400 1,500 1,730 1,850 2,130 2,500 2,500
Roll Speed Ratio 1:1:1:1 0.73:1:1:0.73 1:1.38:1.38:1 1:1.5:1.5:1 1:1.5:1.5:1 1:1.4:1.4:1; 1:1.4:1.4:1.4 0.5~1 1:1.5:1.5:1 0.5~1 0.5~1
Middle Roll Line Speed m/min 2.1-21 2-20.1 3-26.3 2.5-25 3~30 8-50 4-40 3-30 4-40 4-40
Nip Adjusting Range m 0-10 0-10 0-10 0-10 0~10 20 0-30 0-20 0-30 0-30
Minimum Product Thickness mm 0.2 0.2 0.2 0.2 0.2 0.15 0.2 0.15 0.2 0.2
Product Width set 500 920 1,200 1,250 1,300 1,500 1,600 1,900 2,200 2,200
Motor Power kw 15 55 75 110 160 185 90kwx2 110kwx1 220 132kwx4 132kwx4
Overall Dimensions L mm 3,800 3,300 6,400 6,500 7,550 6,580 9,950 7,010 10,400 12,000
W mm 930 940 1,620 1,970 2,400 2,460 3,600 4,150 3,900 3,800
H mm 1,890 2,350 2,490 2,740 3,400 2,920 4,870 3,730 5,140 5,850
Gross Weight t ~4.8 ~16 ~20 ~23 ~45 ~50 ~110 ~100 ~130 ~180
