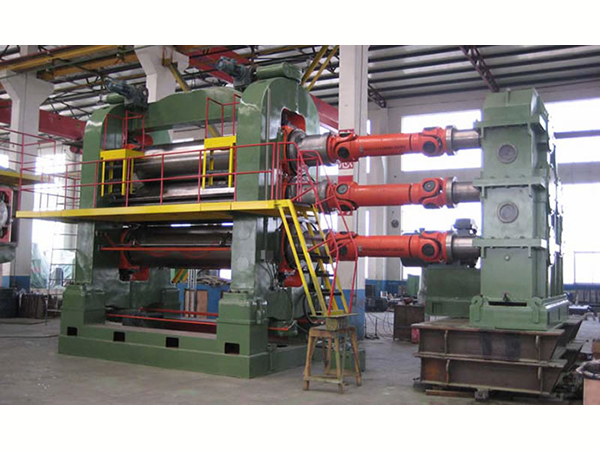

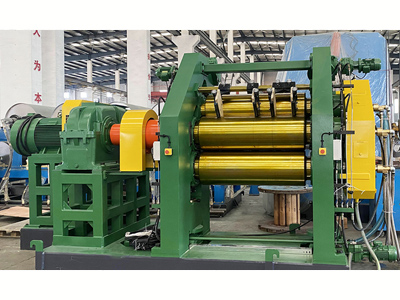

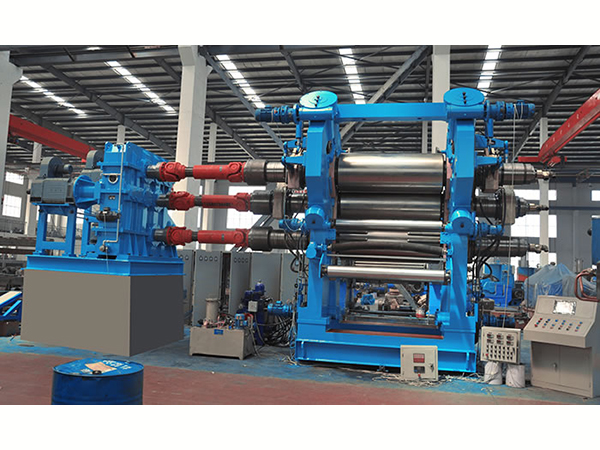

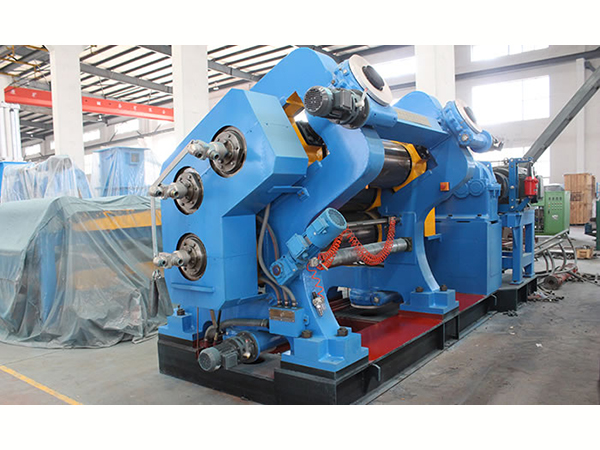

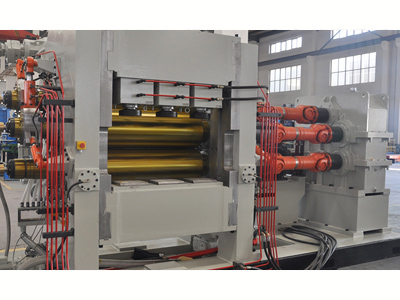

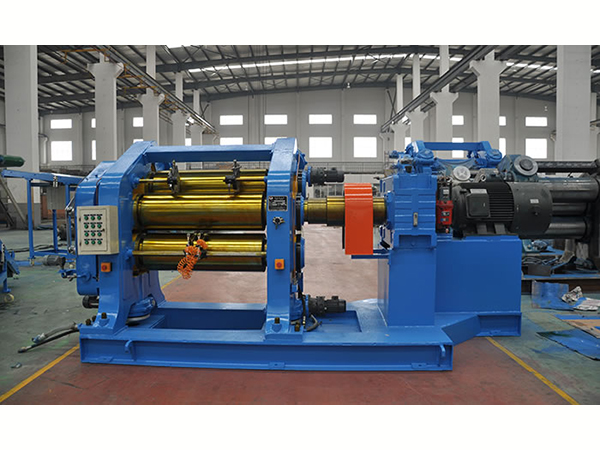

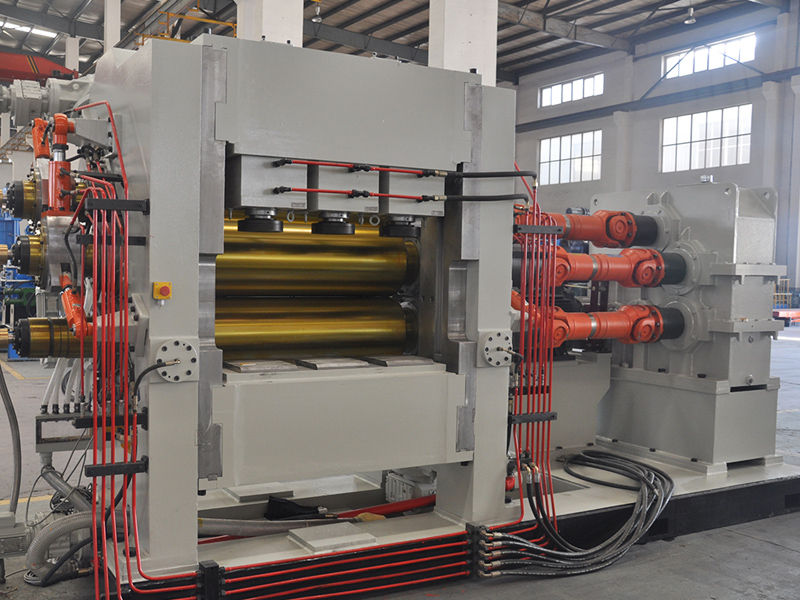

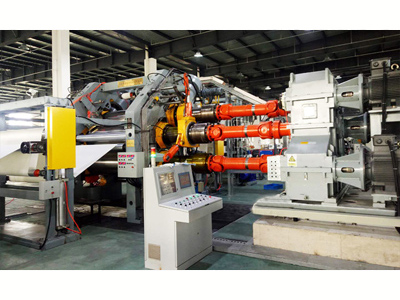

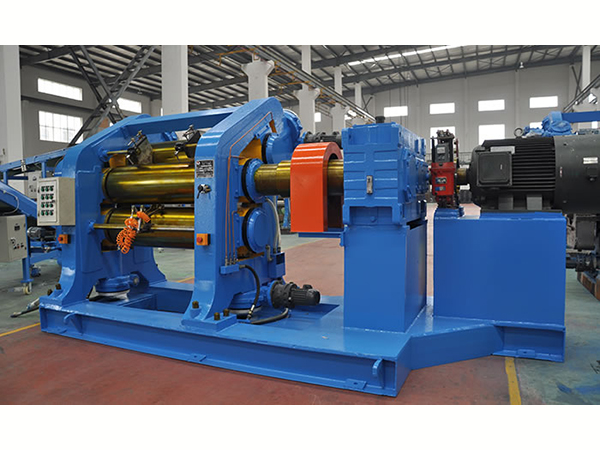

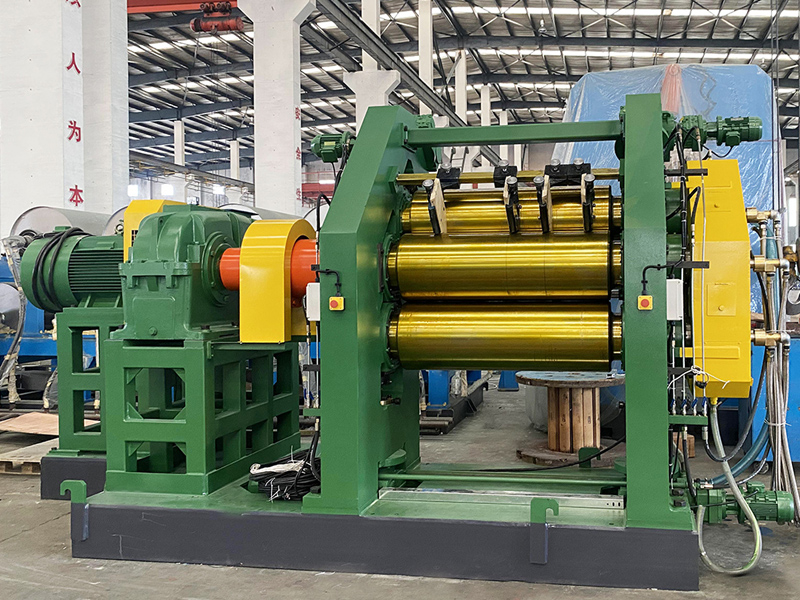

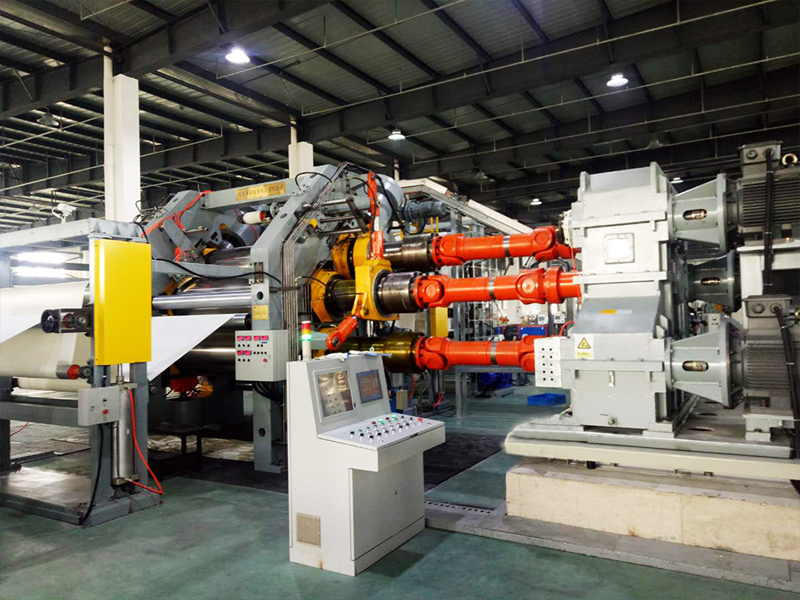

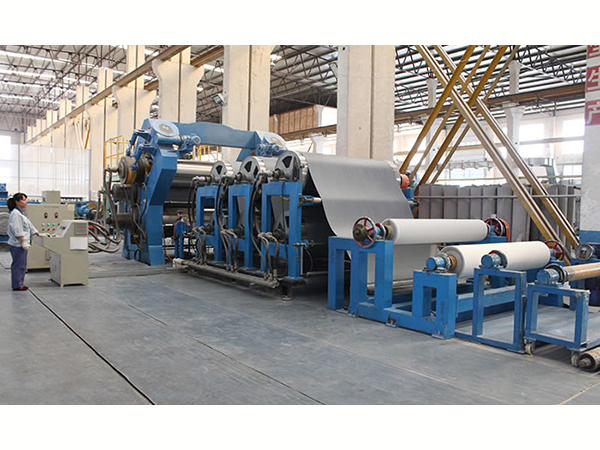

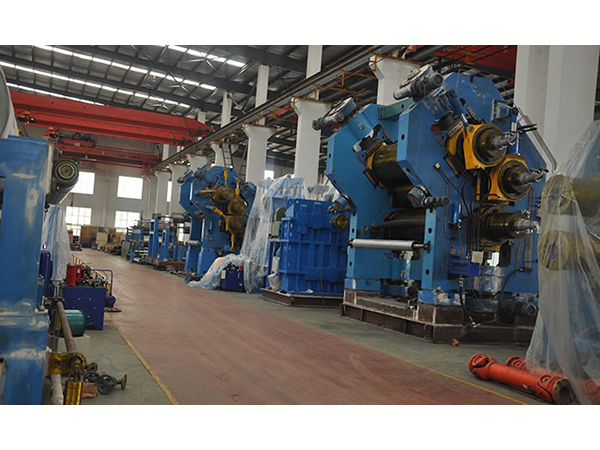

The rubber calender is outfitted with different auxiliary devices to accommodate various processes such as rubberizing and frictioning. Each auxiliary device of the rubber calendering machine is designed in accordance with the corresponding production process, and uses rolling bearings on the rubber calender machine. The gear reducers are designed with a hardened surface to reduce wear, and with either a hollow or bored structure, the rolls used are made of chilled cast iron. The rubber calender can be driven by single or multiple motors, each of which feature a stepless speed regulation to widen the application range.

This rubber forming machine is available in two types: regular and precision. The precision rubber calendering machine is equipped with an axis cross unit, pre-loading mechanisms, a pre-bending device, and a device to prevent the calendered rubber material from extending across the connector.

Specifications
Item Model XY-3I(Γ)
230x630		 XY-3I(Γ)
252x720		 XY-3I(Γ)
300x900		 XY-3I(Γ)
360x1120		 XY-3I(Γ)
400x1200		 XY-3I(Γ)
450x1400		 XY-3I(Γ)
500x1500		 XY-3I(Γ)
550x1500		 XY-3I(Γ)
610x1730		 XY-3I(Γ)
710x1800		 XY-3I(Γ)
710x2130		 XY-3I(Γ)
800x2500		 XY-3I(Γ)
860x2500		 XY-3I(Γ)
900x2800
Roll
Diameter		 mm 230 252 300 360 400 450 500 500 610 710 710 800 860 900
Roll Working Length mm 630 720 900 1,120 1,200 1,400 1,500 1,500 1,730 1,800 2,130 2,500 2,500 2,800
Roll Speed
Ratio		 1:1:1 1:1:1 1:1:1 1:1:1 0.73:1:0.73 1:1:1 1:1.38:1 1:1:1 1:1.5:1 1:1:1 1:1.5:1 1:1:1 1:1.5:1 1:1:1 1:1.4:1 0.5~1 1:1:1 0.5~1 0.5~1 0.5~1
Middle Roll Speed m/min 0.8-8 2-15.9 2-17 2-20 3-26.39 3-26.2 3-30 3~30 4-40 4-40 4-40 3-30 3-30 3-30
Nip Adjusting Range m 0-6 0-6 0-6 0-10 0-10 0-10 0-10 0-10 0-10 0-30 0-15 0-30 0-30 0-30
Minimum
Product
Thickness		 mm 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.5 0.5
Product
Width		 mm 500 580 700 920 1,000 1,200 1300 1,300 1,500 1,600 1,900 2,200 2,200 2500
Motor Power KW 7.5 22 30 45 55 75 90 110 160 90kwx2 110kwx1 185 132kwx3 132kw*2 160kw*1 160kw*3
Overall Dimensions L mm 3,168 3,950 4,200 5,500 6,300 6,650 7350 7,550 7,010 9,950 7,650 11,400 11,700 12,200
W mm 1,150 1,220 1,500 1,500 1,500 2,200 2300 2,400 3,950 3,050 4,560 3,200 3,350 3,600
H mm 1,650 1,870 1,950 2,340 2,440 2,900 3060 3,500 3,730 4,540 4,080 5,050 5,290 5,600
Gross Weight t ~3 ~5.5 ~9 ~14 ~18 ~21 ~28 ~35 ~42 ~90 ~67 ~110 ~130 ~160
