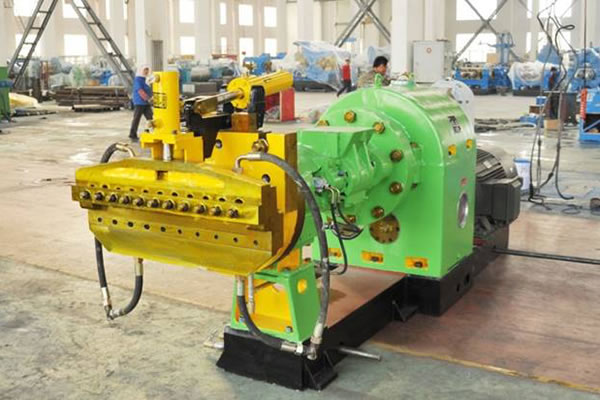

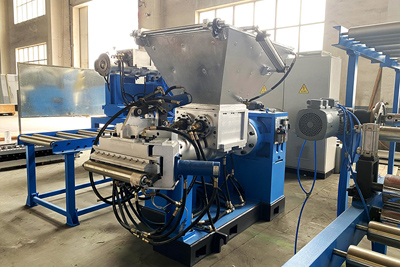

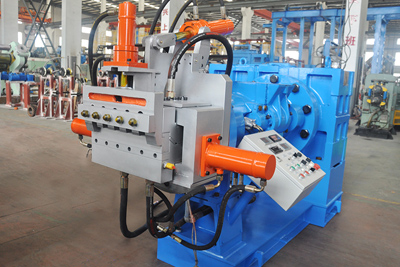

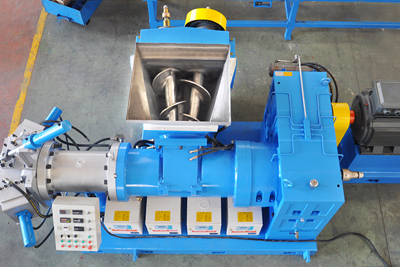

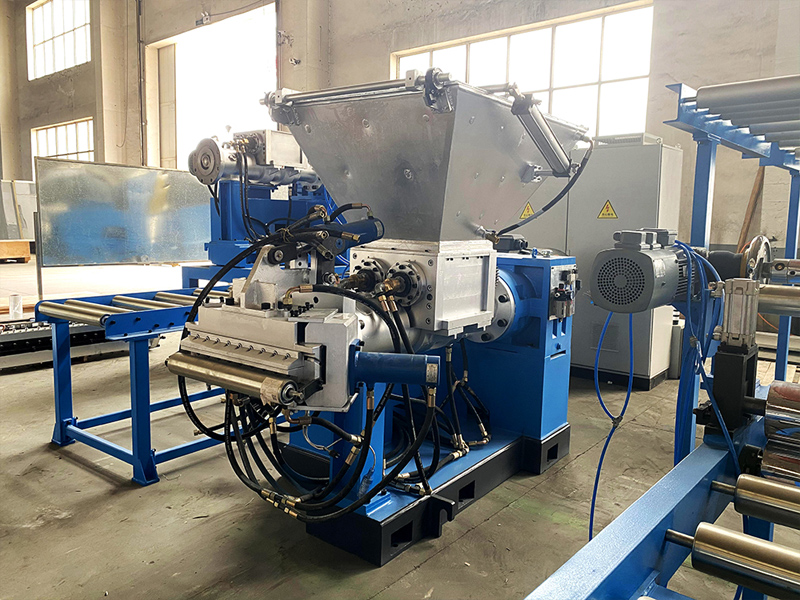

Designed with a compact structure, our hot feed rubber extruder comes with a unitary base to make installation easier. A variable frequency motor is used to ensure an adjustable screw speed, which further promotes the production of profiles with different cross sections.
Specifications of Hot Feed Extruder for RubberModel Item | |||||||||
Screw Diameter | mm | 65 | 85 | 115 | 150 | 200 | 250 | 300 | |
L/D Ratio | 4 | 4.85 | 6 | 4.4 | 4.4 | 4.5 | 4.5 | ||
Screw Rotating Speed | r/min | 4.2~42 | 5.2~52 | 24.74~47.4 | 5.8~58 | 5.6~56 | 5.6~56.3 | 3.5-35 | |
Motor Power | kw | 7.5 | 15 | 22 | 55 | 90 | 110 | 160 | |
Capacity | kg/h | 50~80 | 62~270 | 100~420 | 800 | 1,500~2,200 | 3,600 | 4200 | |
Overall Dimensions | L | mm | 1,594 | 2,065 | 2,770 | 3,411 | 4,093 | 4,950 | 5350 |
W | mm | 604 | 760 | 655 | 814 | 1,430 | 1,150 | 1700 | |
H | mm | 1,053 | 1,154 | 1,350 | 1,470 | 1,750 | 1,483 | 1430 | |
Gross Weight | t | ~1.2 | ~2.6 | ~3.5 | ~4.8 | ~8 | ~9 | ~13 |
