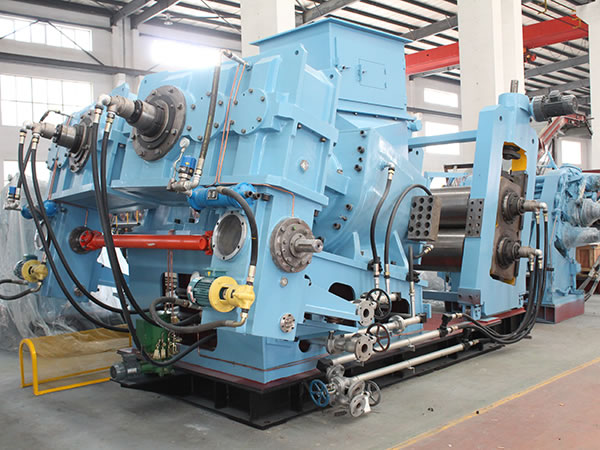

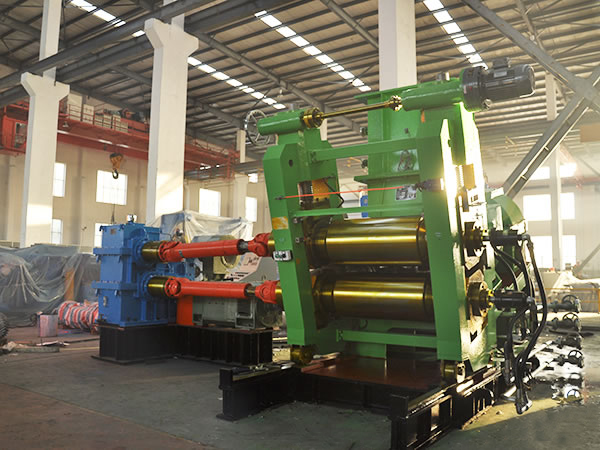

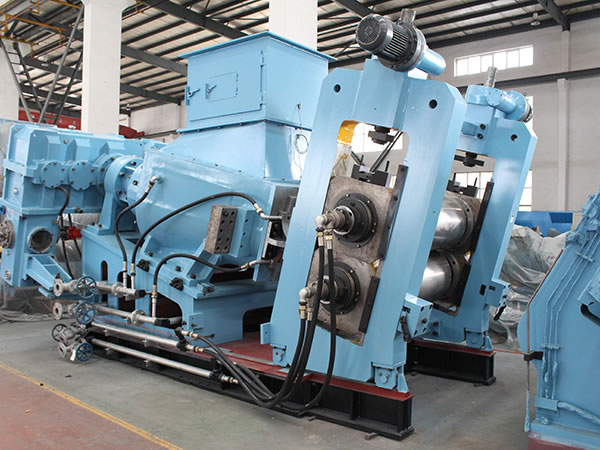

Double Screw Extruding Sheeter

  • Double Screw Extruding Sheeter
  • Double Screw Extruding Sheeter
  • Double Screw Extruding Sheeter
  • Double Screw Extruding Sheeter
Inquiry Form

The Double Screw Extruding Sheeter is designed with a compact layout, significantly improving the ease of installation. The transmission system is driven using either a variable frequency motor or an AC motor. A level detector is installed on the twin screw rubber machine to automatically control the speed of extruding and calendering. Made of chilled cast iron, the rolls come with a bored structure, and the gear reducer is designed with a hardened surface in order to reduce wear. The rubber blender saves labor and is an optional addition. The pulling roll is driven using a variable frequency motor, and rotating components on the extruder make use of reciprocating or hydraulic screws.

Specifications
Model XJY-SZ335x113 XJY-SZ405x141 XJY-SZ482x200 XJY-SZ602 ×250 XJY-SZ743 ×330 XJY-SZ936 ×416
Screw Shape Variable pitch and depth, conical Variable pitch and depth, conical Variable pitch and depth, conical Variable pitch and depth, conical Variable pitch and depth, conical Variable pitch and depth, conical
Screw Quantity (pcs) 2 2 2 2 2 2
Arrangement of Two Screws With angle With angle With angle With angle With angle With angle
Screw Diameter (mm) φ335 ×Φ113 φ405×φ141 φ482×Φ200 Φ 602 × Φ 250 Φ 743 × Φ 330 Φ 936 × Φ 416
Screw Rotating Speed (r/min) 5~18 2.2~22 2.2~22 2.0~22 2.2~22 2.2~22
Power of Motor for Extruder (kw) 22 37 75 90 160 220
Calender Roll Size (mm) Φ348×600 Φ348×700 Φ360×700 Φ 400 × 800 Φ 450 × 1000 Φ 508 × 1070
Calender Roll Rotating Speed (r/min) 2-12 2.5~25 2.5~25 2.5~2.5 3.2~3.2 3~30
Roll Gap Adjusting Range (mm) 3~8 3~8 3~10 3~10 3~10 3~10
Gap adjusting mode Manual Automatic Automatic Automatic Automatic Automatic
Distance between Stock Guides (mm) 400 450 450 550 600(650, 700, 750) 700 (750/800/850)
Power of Motor for Calender (kw) 15 30 75 90 132/160 250
Average Capacity (t/h) 1.5 2 3 6 9 11
Cooling Water Consumption (m3/h) ~13 ~16 ~20 ~30 35~45 38~50
Overall Dimensions (L × W × H ) (mm) 3300×2020×1680 3600×3200×2400 4350×4150×2380 4570×4320×2720 4850 ×5300×2560 5460 ×5800×3400
Gross Weight (Excluding main motor) (t) ~8.5 ~10 ~23 ~25 ~30 ~44
