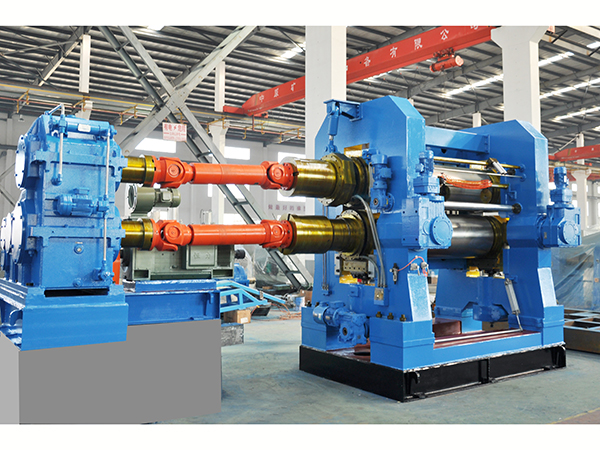

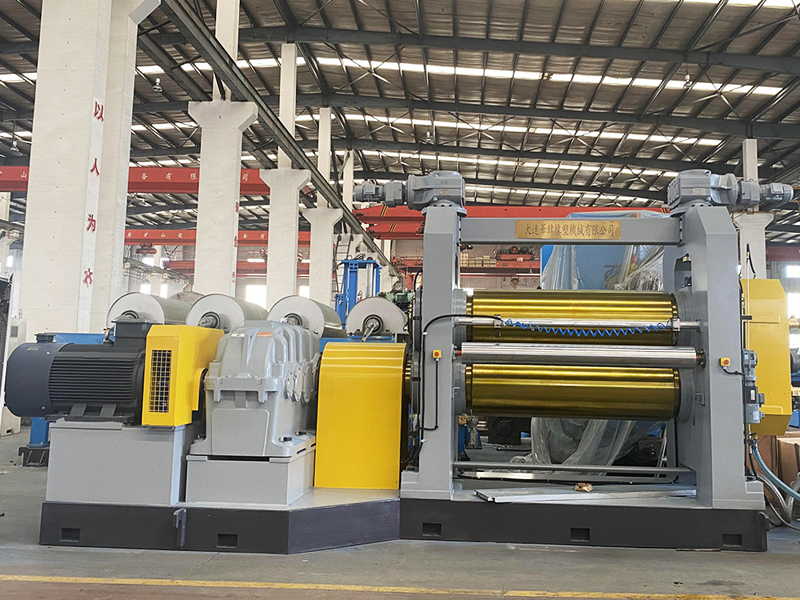

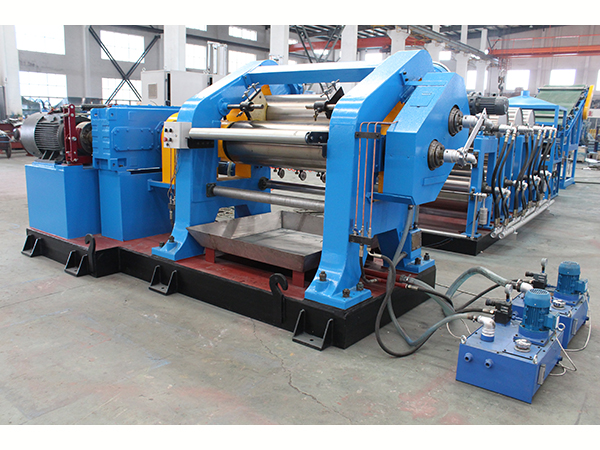

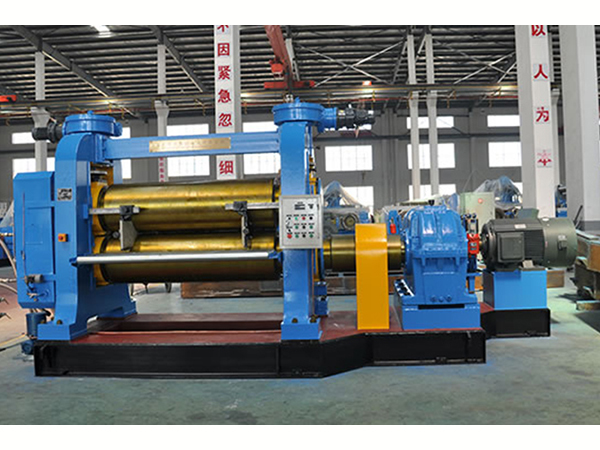

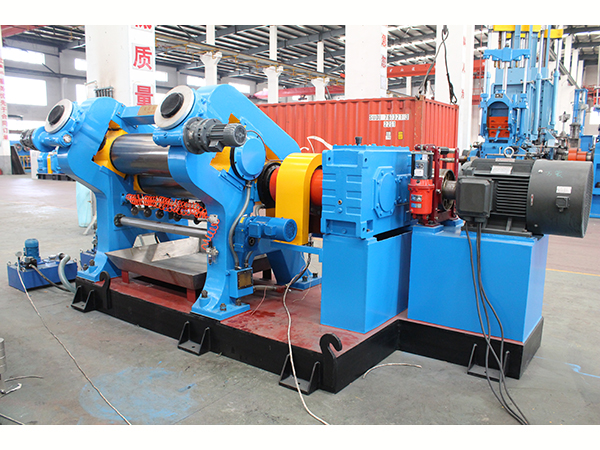

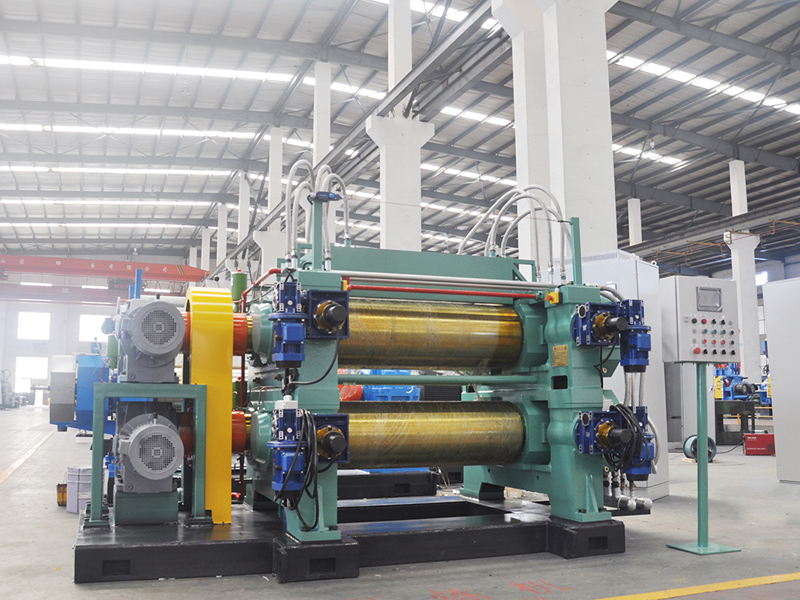

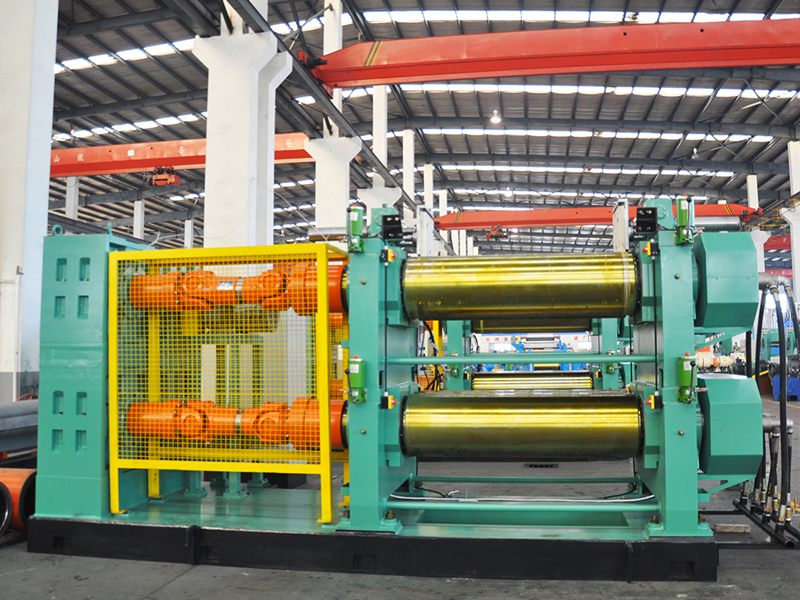

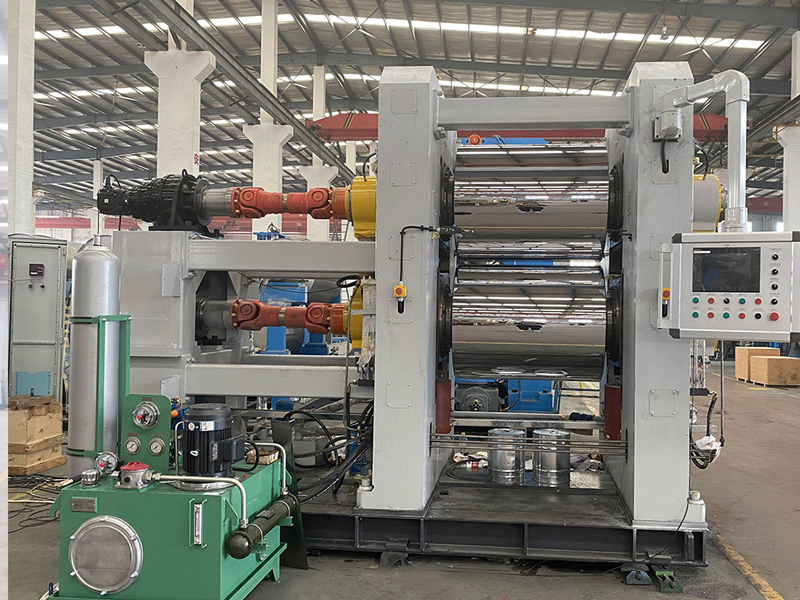

Rubber Calender Machine, 2 Roll

  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
  • Rubber Calender Machine, 2 Roll
Inquiry Form

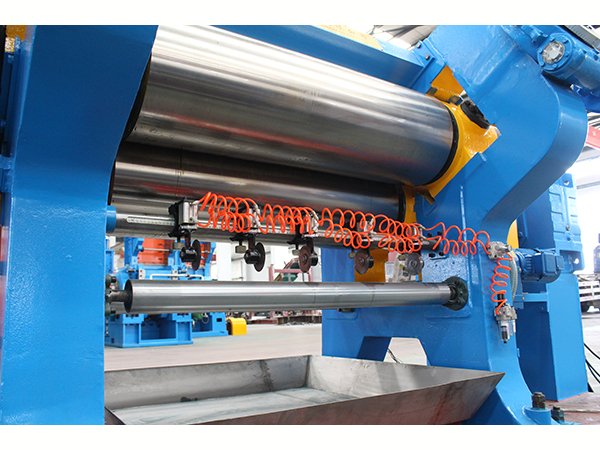

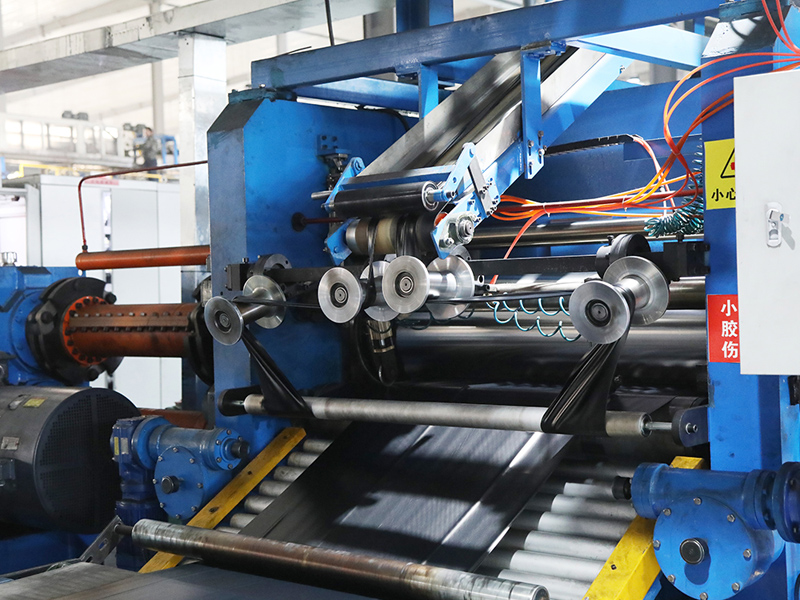

The rubber calender is outfitted with different auxiliary devices to accommodate various processes such as rubberizing and frictioning. Each auxiliary device of the rubber calendering machine is designed in accordance with the corresponding production process, and uses rolling bearings on the rubber calender machine. The gear reducers are designed with a hardened surface to reduce wear, and with either a hollow or bored structure, the rolls used are made of chilled cast iron. The rubber calender can be driven by single or multiple motors, each of which feature a stepless speed regulation to widen the application range.

This rubber forming machine is available in two types: regular and precision. The precision rubber calendering machine is equipped with an axis cross unit, pre-loading mechanisms, a pre-bending device, and a device to prevent the calendered rubber material from extending across the connector.
Specifications of Rubber Calender
Model Item XY-2I(Γ)
160x320		 XY-2I(Γ)
230x320		 XY-2I(Γ)
252x720		 XY-2I(Γ)
360x1120		 XY-2I(Γ)
400x1120		 XY-2I(Γ)
450x1400		 XY-2I(Γ)
550x1650		 XY-2I(Γ)
610x1730		 XY-2I(Γ)
710x2130		 XY-2I(Γ)
810x2430		 XY-2I(Γ)
860x2500
Roll Diameter mm 160 230 252 360 400 450 550 610 710 810 860
Roll Working Length mm 320 630 720 1,120 1,200 1,400 1,650 1,730 2,130 2,430 2,500
Roll Speed Ratio   1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 0.5~1
Roll Line Speed m/min 1-7.6 1-8 1.2-12 3-20.2 3-20 2.5-24.8 2.5-25 4-36 2-20 2-20 3-30
Nip Adjusting Range m 0-4.5 0-6 0-6 0-10 0-10 0-10 0-12 0-15 0.5-25 0.5-25 0-30
Minimum Product Thickness mm 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.5 0.5 0.5
Product Width mm 250 480 580 920 1,000 1,200 1,450 1,500 1,850 2,150 2,200
Motor Power KW 5.5 7.5 15 37 45 45 75 90 110 160 132kwx2
Overall Dimensions L mm 2200 3200 3,950 5,400 4,600 7,013 7,200 5,987 8,150 8,690 12,000
W mm 530 920 1,110 1,542 1,400 1,595 1,760 1,860 3,760 3,139 3,200
H mm 1,470 1550 1,590 1,681 2,450 2,446 2,760 2,988 3,630 4,270 4,050
Gross Weight t ~1.2 ~3.6 ~5 ~11.5 ~13 ~14 ~24 ~30 ~49 ~62 ~85
