Cold Feed Rubber Extruder

Cold Feed Rubber Extruder
Inquiry Form

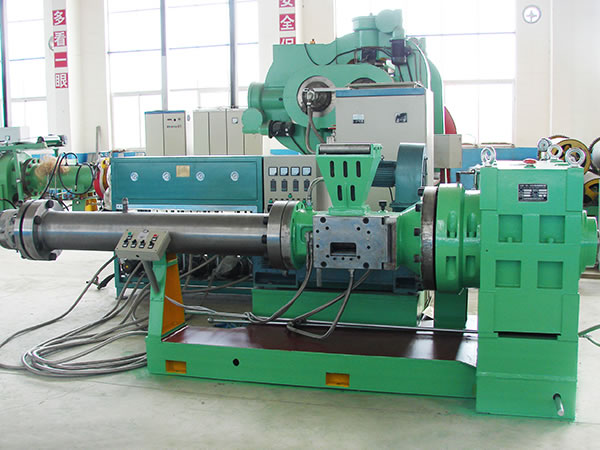

The cold feed rubber extruder uses a gear surface with a hardened surface in order to reduce wear. This rubber extruder is also equipped with an automatic temperature control system, and the motor speed can be adjusted to any value to accommodate various production processes for different extruded products. We offer different types of cold feed rubber extruders, all of which are suitable for the production of mixed rubber strips of different widths and thicknesses, eliminating the need for hot extrusion equipment.

Specifications of Cold Feed Extruder Machine
Model Item XJW-65 XJW-90 XJW-120 XJW-150
Screw Diameter mm 65 90 120 150
L/D Ratio 12 12; 14 12 16
Maximum Screw Rotating Speed r/min 6-60 6-60 5-50 4.5-45
SCREW DIA mm 79 72 120 145
Motor Power kw 15 55-75 75 185
Number of Hot Water Circulating Zones 3 4 4 4
Maximum Heating Power of Hot Circulating System kw 24 48 48 48
Power Supply 380v/50HZ 380v/50HZ 380v/50HZ 380v/50HZ
Capacity kg/h It is decided by the matched head.
Overall Dimensions L mm 1,500 2,800 3,150 4,100
W mm 800 1,400 1,510 1,810
H mm 1,350 1,500 1,500 1,630
Gross Weight t ~2 ~4.5 ~6 ~8
